دستگاه فیوژن فیبر نوری فوجیکورا 12S

نقد و بررسی دستگاه فیوژن فیبر نوری فوجیکورا 12S

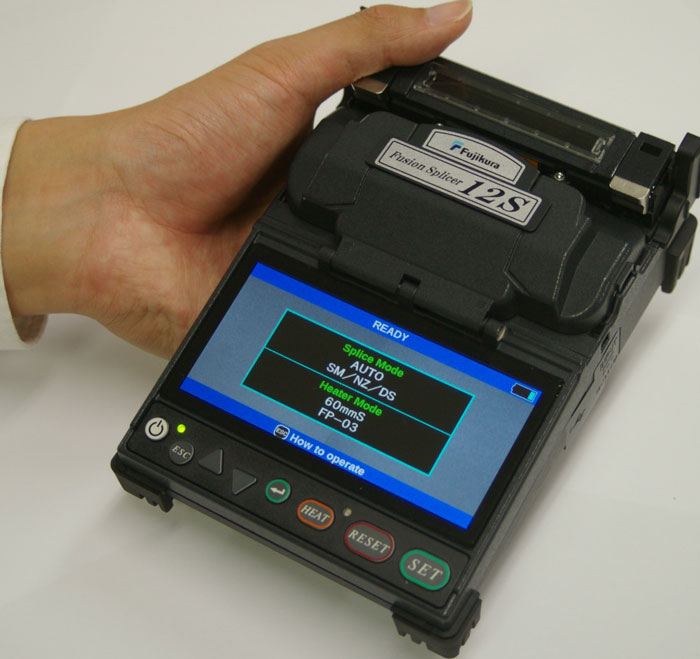

فیوژن فیبر نوری Fujikura 12S

مشخصات فنی دستگاه فیوژن فیبر نوری فوجیکورا 12S:

• Dimensions : 121*162*57 mm
• Fujikura Fusion Weight : 776 g
• Applicable Fibers : Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)
• Cladding Diameter : 125 μm
• Coating Diameter : 250 μm or 900 μm
• Fiber Cleave Length :  5 mm to 13 mm
• Typical Average Splice Loss : 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS) and 0.08 dB (NZDS)
• Splicing Time : Typical 15 sec with SM
• Arc Calibration Method : Automatic, real-time and by using results of previous splice when in AUTO mode, manual arc calibration function available
• Splicing Modes : Total 100 splice modes
• Splice Loss Estimate : Based on dual camera cladding alignment data
• Storage of Splice Result : Last 2,000 splices
• Fiber Display : 4.5 inch TFT color LCD with X or Y view or both X and Y view simultaneously
• Magnification : 100X magnification for X/Y view
• Viewing Method : 2 axis CMOS camera
• Operating Condition :  Altitude : Altitude: 0 to 3,660 m above sea level, -10° to 50° C, Humidity: 0 to 95% RH, non-dew
• Mechanical Proof Test : 1.96 N
• Tube Heater : 30 heating modes
• Tube Heating Time : Typical 30 sec with FP-03 (60 mm) sleeve
• Protection Sleeve Length : 60 mm, 40 mm, micro
• Splice/Heat Cycles with Battery : Typical 100 cycles with BTR-10
• Electrode Life : 3,000 splices
• Power Supply : Auto select from 100 V to 240 V with AC adapter, 14.8 V DC with installed battery
• Terminals : USB 2.0
• Wind Protection : Maximum wind velocity of 15 m/s. (34 mph)
