دستگاه فیوژن فیبر نوری تامتک V9 Mini

نقد و بررسی دستگاه فیوژن فیبر نوری تامتک V9 Mini

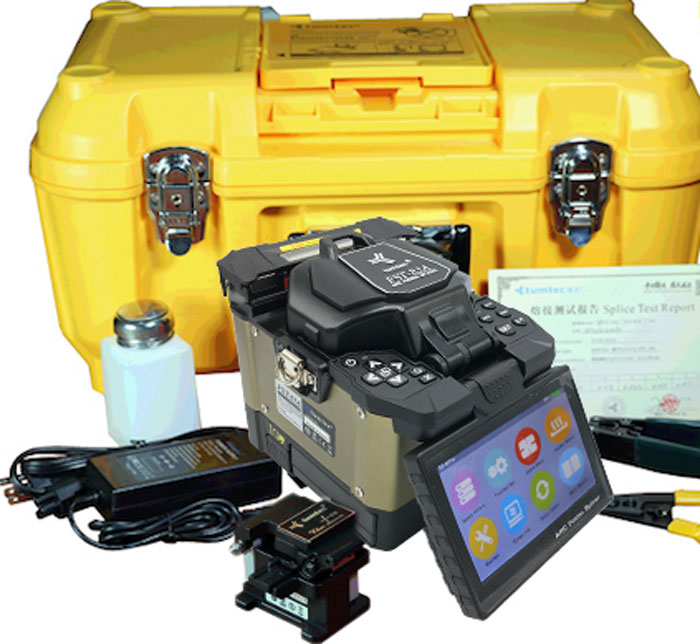

فیوژن فیبر نوری Tumtec V9 Mini

مشخصات فنی دستگاه فیوژن فیبر نوری تامتک V9 Mini :

• Dimensions : 140*165*148 mm
• Tumtec Fusion Splicer Weight : 1.90 g
• Terminal : Mini USB2.0
• Applicable Fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) -DS(ITU-T G.653) / NZDS(ITU-T G.655)
• Compatible Fiber / Cable : 0.25~3.0 mm / Indoor Cable (0.9mm/2.0mm/2.4mm)
• Cleaved Length : Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
• Splicing Mode : Multiple splicing modes
• Typical Splice Loss : 0.01-0.05db
• Return Loss ;  60 dB
• Lighting : 1 Powerful White LED and Illuminated Keypads
• Splicing Time : 6~8 seconds
• Estimated Splice Loss : Available
• Protection Sleeve Length : 20~60 mm
• Heating Mode : Multi Heating Modes
• Heating Time : Typical Heating Time: 30 sec
• Records Storage : The latest 5000 Records
• Tension Test : 1.5~2.0N
• Display : 90° Bi-directional View,
• 4.3" 480*272 Color High Resolution Display with Touch Screen
• Fiber View & MagnificationX, Y, XY, X/Y : 500X Magnification
• Power Supply : AC Input 100-240V, DC Input 12-15V
• Battery Capacity : 6800mAh , Typical above 340 times (Splice+Heat)
• Operating Methods : Button / Touch Screen
• Automatic Calibration : Automatic ARC Calibration According to Air Pressure and Temperature
• Electrode Life : 3500 ARC, can be Extended by Using an Electrode Grinder
